Traditional end-of-line layouts deploy standalone carton erector, separate case packer and independent carton sealer connected by intermediate conveyor sections. This layout occupies larger floor area and introduces synchronization risks between multiple separate machines. The ZCP-600 integrates carton magazine-fed opening, robotic grab batch-loading and final carton sealing into one unified frame. A servo-driven robotic grab mechanism picks pre-grouped products and places batches into newly-erected cartons. After loading is finished, the integrated sealing station folds and seals carton flaps immediately. The machine body is constructed from aluminum-alloy and stainless-steel, good for hygiene-conscious production environments. Built-in position sensors monitor carton presence and product in-feed; abnormal status triggers alarm and halt protection. Compared with split multi-station lines, this 3-in-1 integrated solution reduces inter-machine coordination complexity and shortens overall footprint for medium-speed end-of-line packaging.
Opening-Loading-Sealing Integrated Case Packing Machine
Machine Overview & Line Stations
Opening-Loading-Sealing Integrated Case Packing Machine
ZCP-600 opening-loading-sealing integrated machine, all-in-one case erecting, robotic grab loading & carton sealing, 1-8 cases/min for pharma & daily-chemical products.
The ZCP-600 Opening-Loading-Sealing Integrated Machine is a compact all-in-one end-of-line packaging unit integrating carton opening (erecting), robotic grab-type product loading and carton sealing within a single machine frame. This integrated packaging machine eliminates the need for separate discrete erecting, packing and sealing machines, saving valuable factory floor space. It is suitable for boxes, bottles and other packaged goods widely deployed for pharmaceutical and daily-chemical production workflows. The complete carton workflow runs synchronously under unified servo-PLC control with built-in process monitoring for stable continuous operation.
Kinematic Sequence of Operation
Carton Magazine & Automatic Carton Opening (Erecting)
Blank flat cartons are fetched from the magazine, automatically opened, shaped and bottom-sealed to prepare empty cartons.
Why Deploy This Machine: Core Engineering Advantages
Vibration-damped structural steel base milled on 5-axis CNC machines for zero resonance during continuous 50+ cpm cycles.
Open-Load-Seal All-in-One
Robotic Batch Grab Loading
Aluminum-Alloy & Stainless-Steel Frame
Reduced Floor Footprint
ZCP-600 opening-loading-sealing integrated machine functions as a single synchronized end-of-line node. Up-stream it receives interlock handshake signals from upstream cartoners, blister packaging and product conveyor lines. It can dynamically adjust working cycle speed according to incoming product flow. Down-stream, finished sealed cartons are discharged to downstream conveyors towards palletizing stations. Production run statistics, machine alarm codes and status information can be exported to factory-level SCADA / MES systems. It supports standard Ethernet-IP and Modbus bus signals for inter-machine synchronization, fitting well into existing automated pharmaceutical and daily-chemical packaging lines.
Technical Specifications & Machine Tolerances

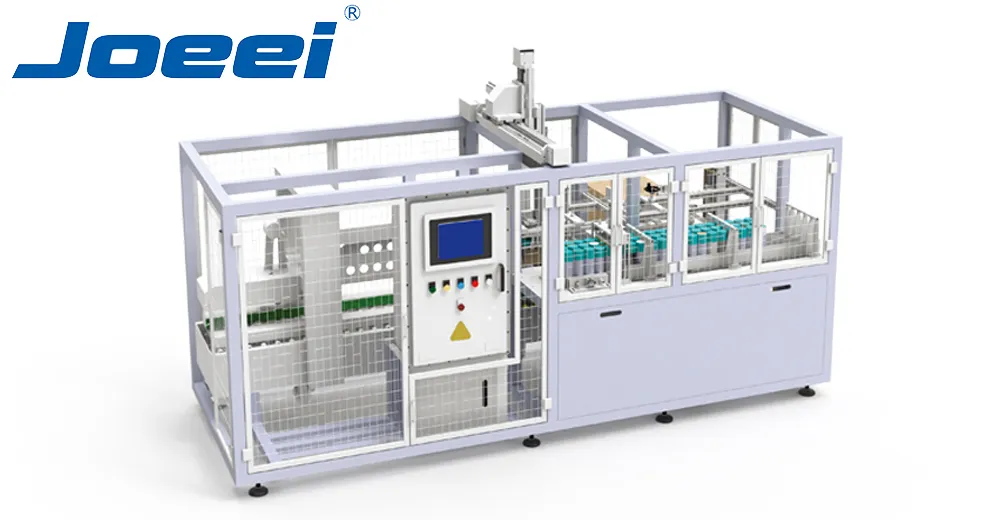

SZP-500 explosion-proof opening-loading-sealing integrated box packing machine is a fully-automatic end-of-line packaging device integrating carton erecting, stacking, loading and case sealing. This integrated packaging line adopts full-servo control with missing-box detection, incoming-material detection, overload protection and carton-position monitoring across all workstations for full-process traceability and controllability. Equipped with dedicated explosion-proof electrical cabinets and actuators, this case packaging machine is purpose-built for aerosol products. It seamlessly interfaces with downstream palletizing systems to deliver a complete hazardous-zone end-of-line packaging workflow for chemical and aerosol manufacturing.
Engineering Q&A: Machinery & Tooling
This 3-in-one unit integrates carton opening, robotic grab loading and carton sealing on one frame. It saves floor space and simplifies synchronization compared with separate erector-packer-sealer line.
Carton dimension range (300-600)×(250-500)×(200-500) mm, reference packed goods dimension 500×350×350 mm.
Working speed is 1-8 cases per minute; actual throughput is determined by how many items are packed inside each carton.
Main frame built with aluminum alloy and stainless-steel, suitable for pharmaceutical and daily-chemical workshop environments.
Yes, it supports Modbus / Ethernet-IP interlock handshake signals for linking upstream product conveyors and downstream palletizing stations.
Ready to Deploy Model [ZCP-600] in Your Facility?
Ship 1 carton of your actual bottles, pouches, or containers to our automation testing lab. Our senior engineering division will supply a complete 3D CAD line layout and formal quotation within 24 hours.
